Features

• Stretchable, flexible, easily laid in narrow spaces.
• TOTAKU DUCT-AL are contracted to a length of 1/5, and TOTAKU DUCT-AL II are contracted to a length of 1/10 and can be stored compactly, so stock space isn't taken up
• Good bending resistance, and heatproof. (80 c or less)

Applications.

• For exhaust fans in houses, apartments, Stores and other buildings.
• For air-conditioning of buildings

* Don't use fro ducting cook stoves (Not nonflammable)
Permissible temperature range (Continuous): -20-80c

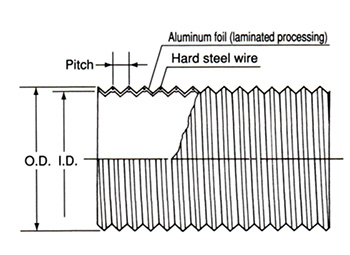

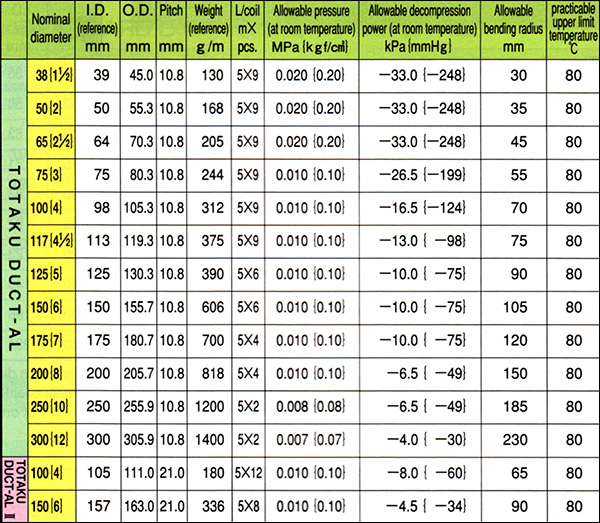

STANDARD DIMENSIONS & PROPERTIES

*The inside diameter is a reference value. When using an insertion-type coupling and part,
please check it with the autual article.
*When inserting in nipples, etc, please insert a hose in an elongated state.

Attachment for TOTAKU DUCT-AL - TOTAKU DUCT-AL II

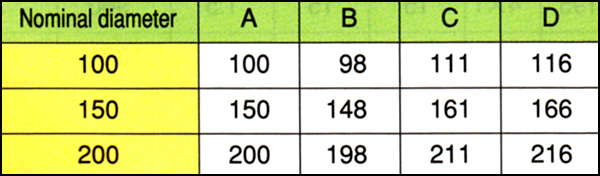

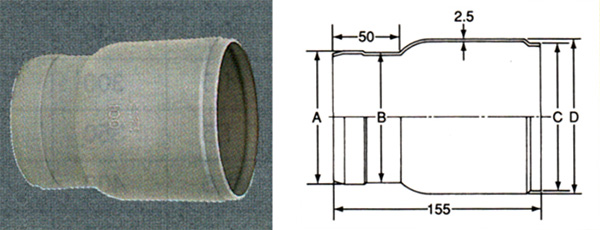

Adapter joint (material : PE)
the diffierent diameter joint that can easily connect  TOTAKU DUCT-AL with the duct attachment mouth of a ventilation fan.

Item No.92101                                                                   (mm)

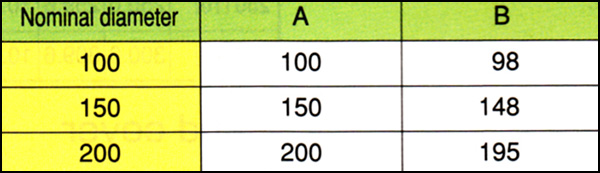

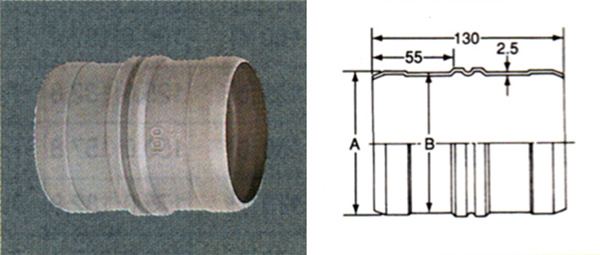

Duct joint (material : PE)
the straight joint for connecting between two pieces of TOTAKU DUCT-AL II

Item No.92102                                                                   (mm)

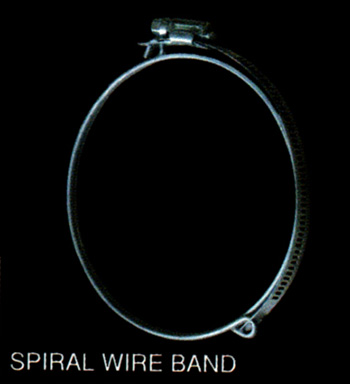

Fixing bands

Please use the SPIRAL WIRE BAND for the fixing work.
*Every size is available to you.
